Herkunftsort:
CHINA
Markenname:
Kaideli
Modellnummer:
bw

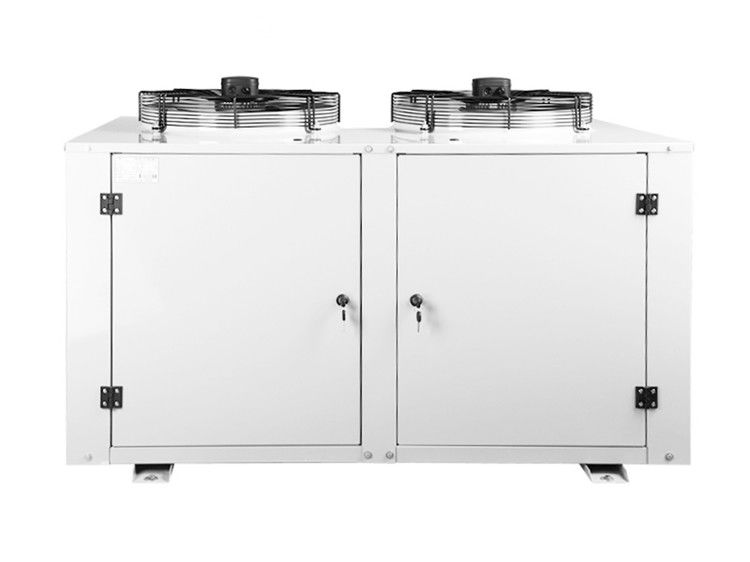

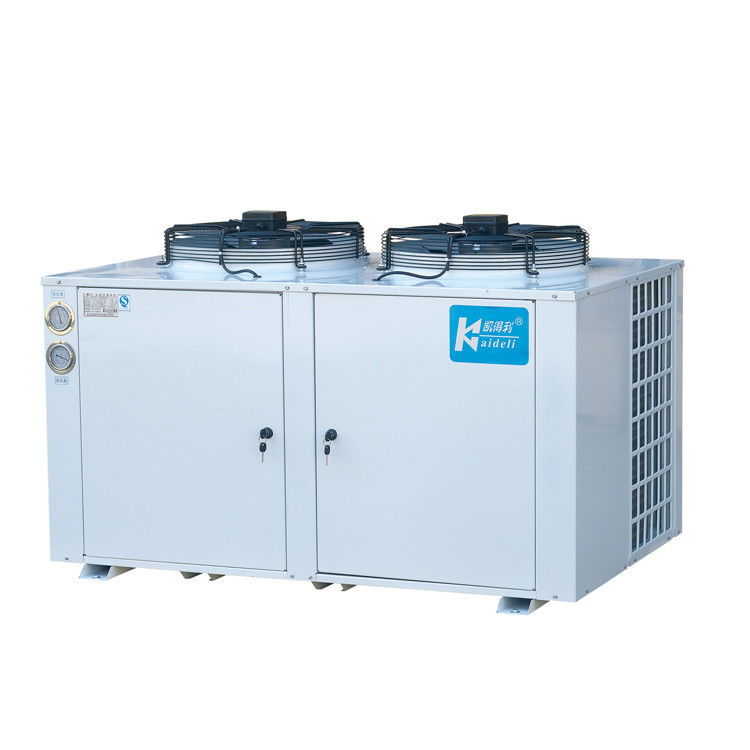

BW series box-type condensing unit product overview
BW series box-type condensing units are mainly developed for cold store applications, which have the following features:
1.The main component is Emerson ZB or ZFI series fully enclosed scroll compressor, which features high quality and high reliability.
2.The unit is designed for high temperature, medium temperature and low temperature applications, of which the high-temperature unit is mainly used for the cold store of 8-15 °C, and the medium-temperature unit is mainly used for the cold store of -5 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C;
3.It has a horizontal compact box-type structure, of which the enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, especially for outdoor use; its chassis cover is connected with hinge structure, which is easy for operation and maintenance.
4.Designed with overall stretching large rounded high fan tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
5.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
6.The condenser is designed in U-shaped structure, with fewer pipes, large windward surface and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit.
8.The wiring of electrical devices other than the compressor has been connected to the built-in terminal block of the unit, which is convenient for wiring.
9.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.
Unit Configuration
Medium-temperature and high-temperature unit
| Components | Unit model BW | |||||||||||
| 06H | 07H | 08H | 09H | 10H | 12H | 13H | 15H | 20H | 22H | |||
| 06M | 07M | 08M | 09M | 10M | 12M | 13M | 15M | 20M | 22M | 25M | 30M | |
| Scroll compressor(welded joint) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Oil heating band | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Exhaust damping pipe | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ● | ● | ● |
| Oil separator | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ● | ● | ● |
| Condenser (hydrophilic aluminum foil) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External rotor fan | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir outlet shut-off valve | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Dry filter | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Sight glasses | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure protection | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure gauge | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Refrigerant solenoid valve | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| High pressure control (fan control) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Low pressure control (vent shutdown) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Note:●Standard components,○ Optional component,/Not available |
|
|||||||||||
Low-temperature unit
| Components | Unit model BW | ||||||||
| BW06LY | BW08LY | BW10LY | BW12LY | BW15LY | BW18LY | BW20LY | BW25LY | BW30LY | |
| Scroll compressor (EVl) | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Oil heating band | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Exhaust damping pipe | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ● |
| Gas-liquid sepatator | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ● |
| Condenser (hydrophilic aluminum foil) | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External rotor fan | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir outlet shut-off valve | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Dry filter | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Sight glasses | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure protection | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure gauge | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| (Subcooling) solenoid valve | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| (Subcooling) expansion valve | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Subcooling exchange plate | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Refrigerant solenoid valve | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| High pressure control (fan control) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Low pressure control (vent shutdown) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Note:●Standard components,○ Optional component,/Not available | |||||||||
